Airmaster 200x200-200 Magnetic Eggcrate

Available from Stock

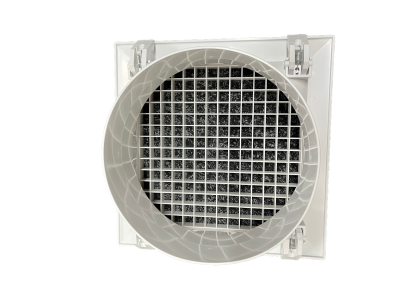

Magnetic Eggcrate Diffuser – Ø200mm Neck

The Magnetic Eggcrate Diffuser with a Ø200mm neck size is designed for compact return air applications in HVAC systems. Constructed from lightweight plastic, it features a magnetic front cover that allows quick, tool-free removal for cleaning and maintenance. The open-cell eggcrate design provides high airflow with low pressure resistance, supporting efficient system performance.

Applications

Residential HVAC return air outlets
Ceiling return points in offices and small retail spaces
Compact ventilation systems requiring easy access for maintenance

Installation & Compatibility

Neck size: Ø200mm round duct connection
Magnetic front cover for simple removal and refitting
Suitable for ceiling-mounted installations

Specifications:

Dimensions Face: 260mm x 260mm

Thickness of Face Plate: 5mm

Removable Eggcrate: 200mm x 200mm

Eggcrate: 10mm x 10mm held in by 4 magnetics

Spigot Size: OD 195mm

Spigot Length: 100mm

Material: ABS Plastic

Finish: Bright White

Airflow: 90% Free Air approx 90 l/s
