KL150/CL18 Dyna-Tite Cable Lock

Available from Stock

Category

Duct Hanging

Code

KL150/CL18

Brand

RRP

$14.00

Minimum quantity

1

$12.17

Description

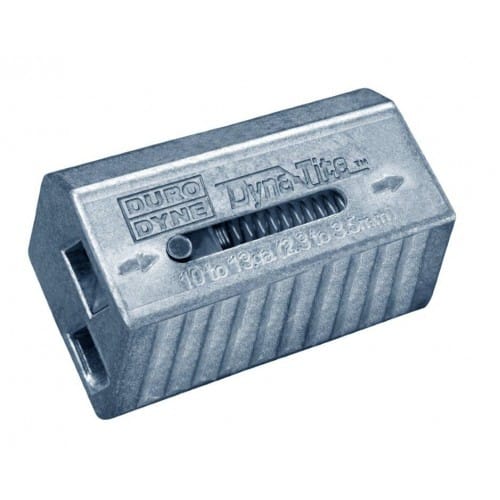

The Duro Dyne Dyna-Tite KL150 (CL18) Cable Lock is for use with 2.3mm (3/32 inch) and 3.2mm (1/8 inch) wire rope.

The KL150 (CL18) Duro Dyne cable locks for securing wire rope for Dyna-Tite duct hanging systems. Duro Dyne cable locks are seismically rated.

Load Ratings:
70kg on 2.3mm cable, 125kg on 3.2mm cable

  • (KL150) CL18 have been SMACNA approved for Seismic Applications
  • All locks feature an easy release pin
  • The Maximum Load Range for each size wire rope incorporates a design safety factor of 5:1
  • Dyna-tite cable locks may be used in temperatures up to 300 deg F
  • Dyna-tite cable locks wedges are constructed of corrosion resistant sintered steel
  • Dyna-tite cable lock springs are constructed of tempered stainless steel
  • All Working Load Ratings of dyna-tite cable locks manufactured by Duro Dyne have been witnessed and verified by Independent Testing Labs
