YK0 2-Way Branch 150 Base - Any 2 Dampered
Manufactured 1-2 Days
Description

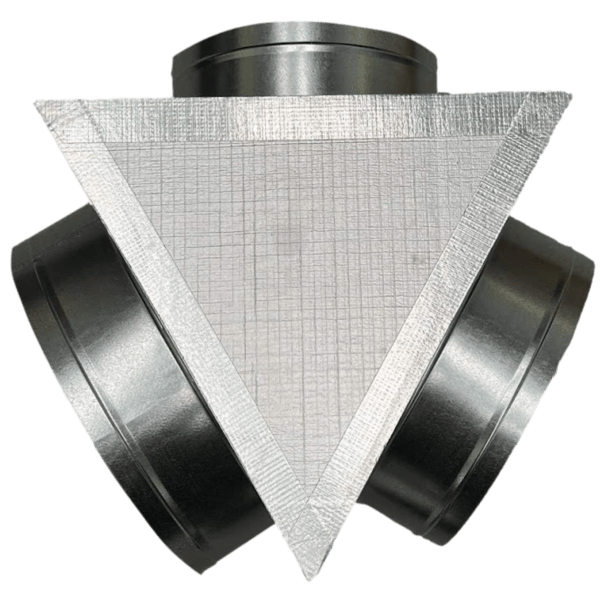

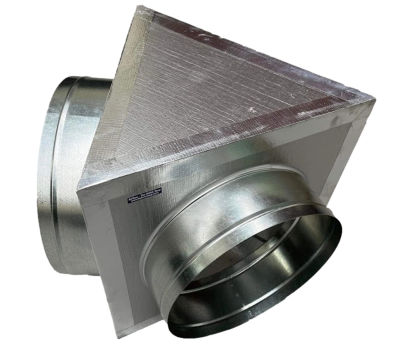

The Airflow YK0 2-Way Branch is a lightweight, pre-insulated duct branch manufactured with a 150mm base spigot and your choice of two dampered outlet spigot sizes.
Both outlets incorporate a metal balancing blade with an NQK plastic quadrant set, allowing the airflow through each branch to be manually adjusted and balanced to suit the system.
Manufactured from 20mm PIR pre-insulated duct panel, it provides a neat, insulated solution without the need for additional external lagging.
Ordering
The 150mm base is fixed. Specify the required size of each of the two dampered branch outlets when ordering.
Specifications
- Base Spigot: 150mmØ
- Branch Outlets: Any 2 dampered spigot sizes
- Damper Type: Manual balancing dampers
- Damper Blades: Metal
- Damper Control: NQK plastic quadrant sets
- Panel: 20mm PIR pre-insulated duct panel
- Thermal Performance: Approx. R1.0
- Operating Temperature: -26°C to +85°C
- Construction: PIR insulation with aluminium foil facings
- Manufactured by: Airflow Engineering
Balanced Airflow to Both Branches
The YK 2-Way Branch combines insulation and air distribution in one lightweight component, with independent manual balancing dampers allowing the airflow through both branches to be trimmed individually to suit the system.
