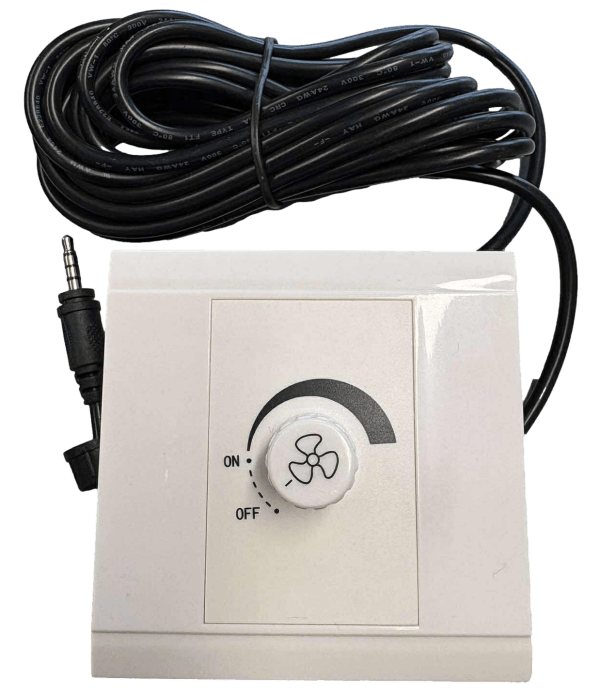

SJMF Fan Speed Controller

Speed Control

Adjust your fan speed with ease:

• Remote potentiometer controller (0–10 VDC or PWM)

• Manual control with detachable 5 m lead

• Fits the fan’s 3.5 mm jack connection

Important: SJMF Fans are supplied as fixed speed. To use speed control:

1. Remove the 3.5 mm jack plug.

2. Connect the supplied cable to the speed control circuit.

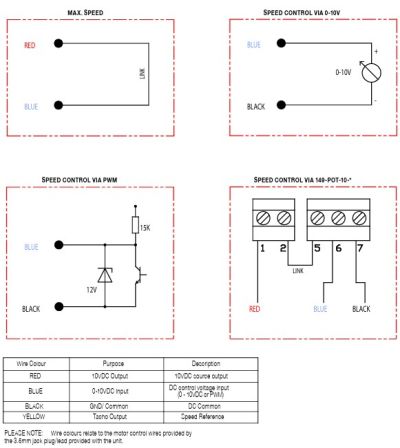

3. Follow the diagrams below for correct wiring.

Product Nane	Wall Mounted Coller
Size	86mm x 86mm x 47mm
Control Signal	POT(10KΩ)
Jack Type	4 Pins Port
Working Temperature	20°C to 60°C
Working Humidty	0%-99%
Housing	ABS+PC
