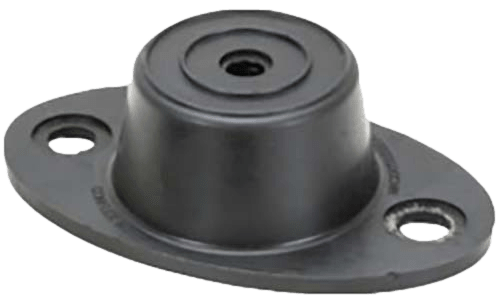

Conflex Isolator M1111-45
Available from Stock
$39.14
Description
Conflex isolators are designed to meet almost all machinery installations within the load range.
Rubber base for anti-skid when used without bolting base to the floor.
They are the versatile answer to mobile or static vibration problems.
| A - Length | 80mm |
| A2 - Length | 60mm |
| B - Width | 50mm |
| B2 - Width | 31mm |
| C- Height | 29mm |
| E - Hole Diameter | M8mm |
| Durometer - IRH | 45 |
| Weight | 0.08kg |
| Max Load - Compression | 40kg |
| Max Deflection - Compression | 5mm |
| Max Load - Shear | 10kg |
| Max Deflection - Shear | 5mm |
